V Fender.

V Fender.

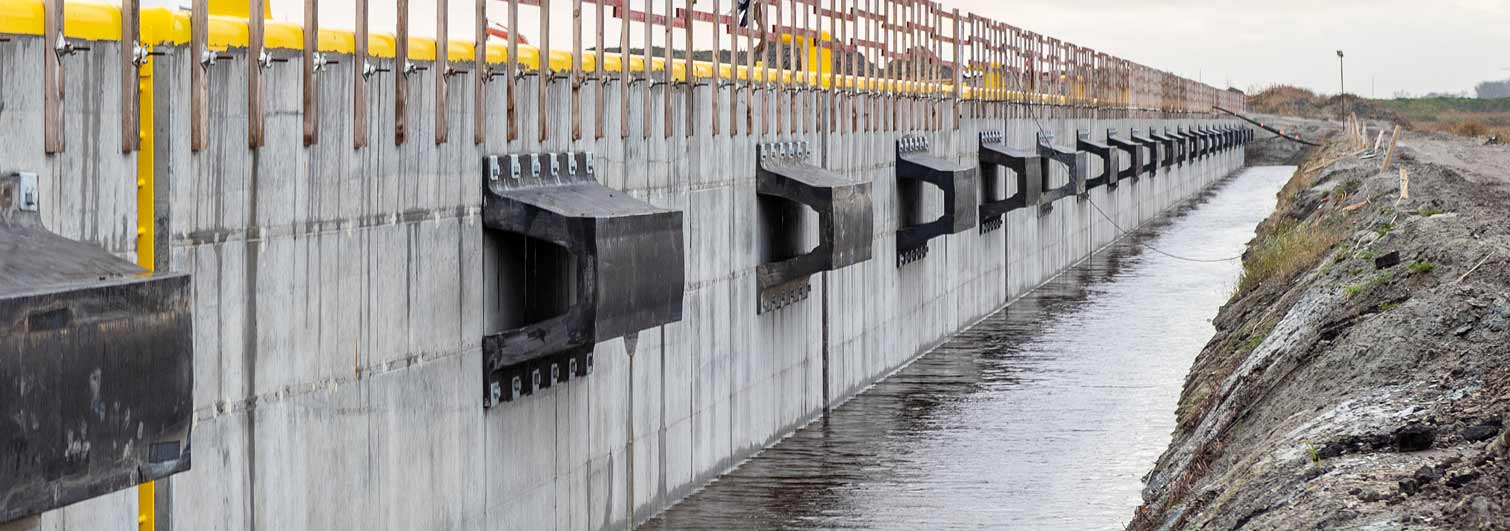

The V Fender is a rigid and simple molded one piece rubber fender type. V Fenders are available in different cross sections, SX and SH. The main difference is the width of the fender head and resulting surface load. Each type can be equipped with an additional embedded steel plate in the rubber fender head (SX-P and SH-P). This allows the installation of an UHMW-PE frontal plate, a steel fender panel or the mounting of the fender unit behind a pile construction.


Both V Fenders (SX and SH) are available in standard heights from 250 to 1,000 mm, in standard length ranging from 1,000 to 3,500 mm, each in 3 different main rubber grades*
*For intermediate rubber grades see SFT Product Catalogue (page 36 - 37) in our download section.

SX FENDERS
The SX Fender is the standard V Fender in the traditional one piece design.
SX-P FENDERS
The SX-P Fender has an embedded steel plate and can therefore be equipped with an UHMW-PE frontal plate or a steel panel or be integrated into another structure.
SH FENDERS
The SH Fender has a wider frontal face than the SX Fender resulting in a lower surface load.
SH-P
The SH-P Fender has an embedded steel plate and can therefore be equipped with an UHMW-PE frontal plate or a steel panel or be integrated into another structures.



V Fender Characteristics

  • Suitable for a wide range of applications
  • Very robust, durable and requires low maintenance
  • High shear resistance in the longitudinal direction
  • Can be installed both vertically and horizontally
  • Suitable for turning dolphins & pivot points



V Fender Applications



  • SX Fenders

General Cargo Terminals
Berth for tug boats

  • SH Fenders

General Cargo Terminals
Berth for tug boats with the need for low hull pressure

  • SX and SH Fenders

Multi-Purpose-Terminals
RoRo ramps
Passenger Vessel Terminals
Barge



For further information feel free to contact us.



V Fender – Marine Rubber Fender

Recent news about V Fenders

[06.03.2024] 125 V Fenders supplied for the new Capurro fishing terminal in Uruguay.

V Fender Drawings

Dimensions SX Fenders
Fender
Size		 H
[mm]		 W
[mm]		 w
[mm]		 t
[mm]		 C
[mm]		 PW
[mm]		 Anchors
[mm]
SX 250 250 500 200 18 178 400 M24
SX 300 300 600 240 23 213 480 M30
SX 400 400 800 320 27 285 640 M36
SX 500 500 1,000 400 29 358 800 M36
SX 600 600 1,200 480 34 425 960 M42
SX 800 800 1,500 640 38 520 1,300 M48
SX 1000 1,000 1,800 800 47 610 1,550 M48
Dimensions SX-P Fenders
Fender
Size		 H
[mm]		 W
[mm]		 w
[mm]		 t
[mm]		 C
[mm]		 PW
[mm]		 K
[mm]		 Anchors Bolts
SX-P 250 250 500 200 18 178 400 40 M24 M16
SX-P 300 300 600 240 23 213 480 40 M30 M20
SX-P 400 400 800 320 27 285 640 40 M36 M20
SX-P 500 500 1,000 400 29 358 800 50 M36 M24
SX-P 600 600 1,200 480 34 425 960 50 M42 M24
SX-P 800 800 1,500 640 38 520 1,300 60 M48 M30
SX-P 1000 1,000 1,800 800 47 610 1,550 80 M48 M36
Dimensions SH Fenders
Fender
Size		 H
[mm]		 W
[mm]		 w
[mm]		 t
[mm]		 C
[mm]		 PW
[mm]		 Anchors 
SH 250 250 625 280 18 203 530 M24
SH 300 300 750 340 23 245 640 M30
SH 400 400 1,000 450 27 325 850 M30
SH 500 500 1,200 560 30 380 1,040 M36
SH 600 600 1,400 675 35 438 1,230 M42
SH 800 800 1,800 900 40 550 1,600 M48
SH 1000 1,000 2,200 1,125 40 663 2,000 M48
